KONA IP brings all of the expertise, power, quality and reliability behind the KONA product line, to the world of Video over IP for 4K/UltraHD and 2K/HD workflows.
KONA IP offers a tremendously flexible video and audio I/O platform with support for up to 4K/UltraHD with SMPTE ST 2110, support for up to 2K/HD with 2022-6, the ability to take advantage of 2022-7 redundancy for high availability architectures, and an option for compressed TR-01 JPEG 2000 workflows, KONA IP ensures you have all the tools you need to succeed as the prevalence of video over IP increases.
On the desktop, KONA IP seamlessly supports Apple® FCPX, Adobe® Premiere® Pro CC, Avid® Media Composer®, AJA Control Room and other leading editorial, effects and production tools. For creative users the experience of using favored applications remains unchanged, with some differences only in setting up for capture or output with the same AJA Control Panel creative users are used to.
For developers, the same AJA SDK used for SDI and HDMI devices is also used for KONA IP, meaning zero delay in writing applications and creating systems with this powerful PCIe capture and output card.
And for any critical/enterprise scale media production installations, the additional peace of mind that comes with a 3 year warranty, advance replacement and support via phone is standard with all KONA cards.
Broadcast IP is here. Transition seamlessly with KONA IP.
KONA IP is designed to fit into either hybrid or all-IP infrastructures, while bridging that familiar KONA experience that professionals rely on for critical work, into Video over IP workflows.
KONA IP offers SMPTE ST 2110, SMPTE 2022-6/7 uncompressed IP video standards, including network redundancy/Hitless Switching for transmission, as well as optional JPEG 2000 support.
KONA IP supports leading NLE, Compositing and Streaming applications via our industry best plug-ins, plus the AJA software tools you rely on including AJA Control Room and AJA Control Panel.
KONA IP also includes a Downstream Keyer with support for graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte, perfect for the needs of live IP delivery.
AJA offers full compatibility for the new Apple Mac Pro, including support for AJA Control Room with Metal compatibility as well as extensive support for a range of applications.
For productions involving video and audio over IP, KONA IP is a perfect companion for the new desktop.
With Desktop Software v15.2, KONA IP offers extended SMPTE ST 2110 support with the addition of ST 2110-40 for ANC data; for transmittal and reception of timecode, closed captioning and more. KONA IP also offers ST 2110-23 for combining multiple ST 2110-20 Streams into a single video essence for 4K/UltraHD support.
Desktop Software v15.2 SMPTE ST 2110 Support includes:
Broadcasters and facilities are able to synchronize production of audio, video and ancillary data elements, eliminating the need for embedding/disembedding to/from SDI while also reducing latency.
AJA NMOS is an optional component within the AJA Desktop Software installer. When running, it enables NMOS based discovery, registration and control within software defined video networking environments, and resides in the system tray of your OS. Right clicking on the application provides access to log and status information and provides an option to exit if required.
If you choose to install AJA NMOS and during that dialog also choose to have the application autorun, then it will automatically start upon power up or reboot.
Aside from the ability to capture and playback uncompressed SDI compliant video, with up to 16 channels of embedded audio and ANC via SMPTE ST 2110, KONA IP also bridges nicely into the creative suite or edit bay with a local HDMI output with 8 channels of embedded audio, and support for HD frame rates up to 60p.
HDR or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.
KONA IP with the latest AJA Desktop Software provides HDMI based HLG, and HDR10 support with HDR Infoframe metadata, for output to compatible displays, in accordance with HDMI 2.0a/CTA-861.3. Check with your software vendor to ensure their application supports this valuable AJA hardware feature.

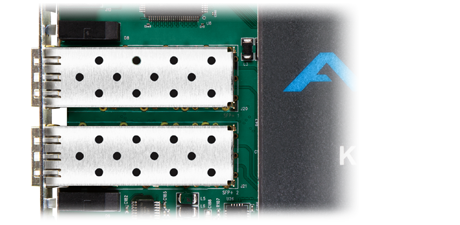

KONA IP supports multiple video over IP workflows using dual 10 GigE SFP cages. Mix and match based upon your project's needs, whether you require 4K/UltraHD 4:2:2 via SMPTE ST 2110-23, or ST 2022-7 redundancy for either ST 2022-6 or ST 2110 workflows with 2K/HD/SD 4:4:4 or 4:2:2 video upon transmission, KONA IP has you covered.
This is complemented by support for 16-Channel embedded audio and local HDMI monitoring.

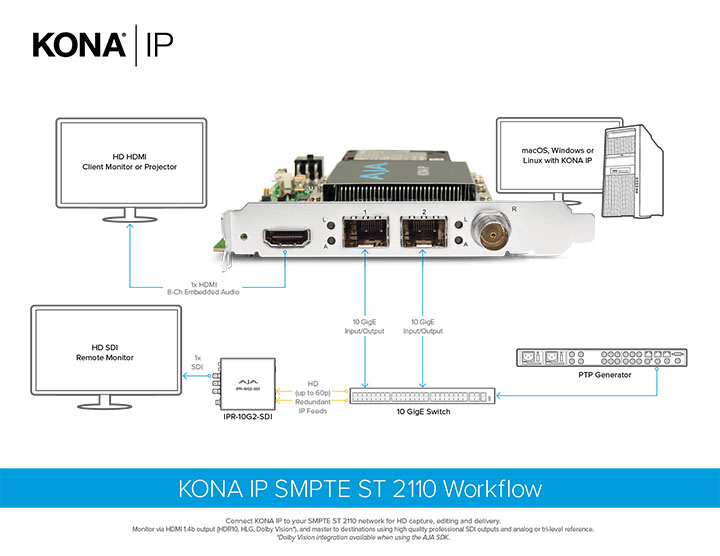

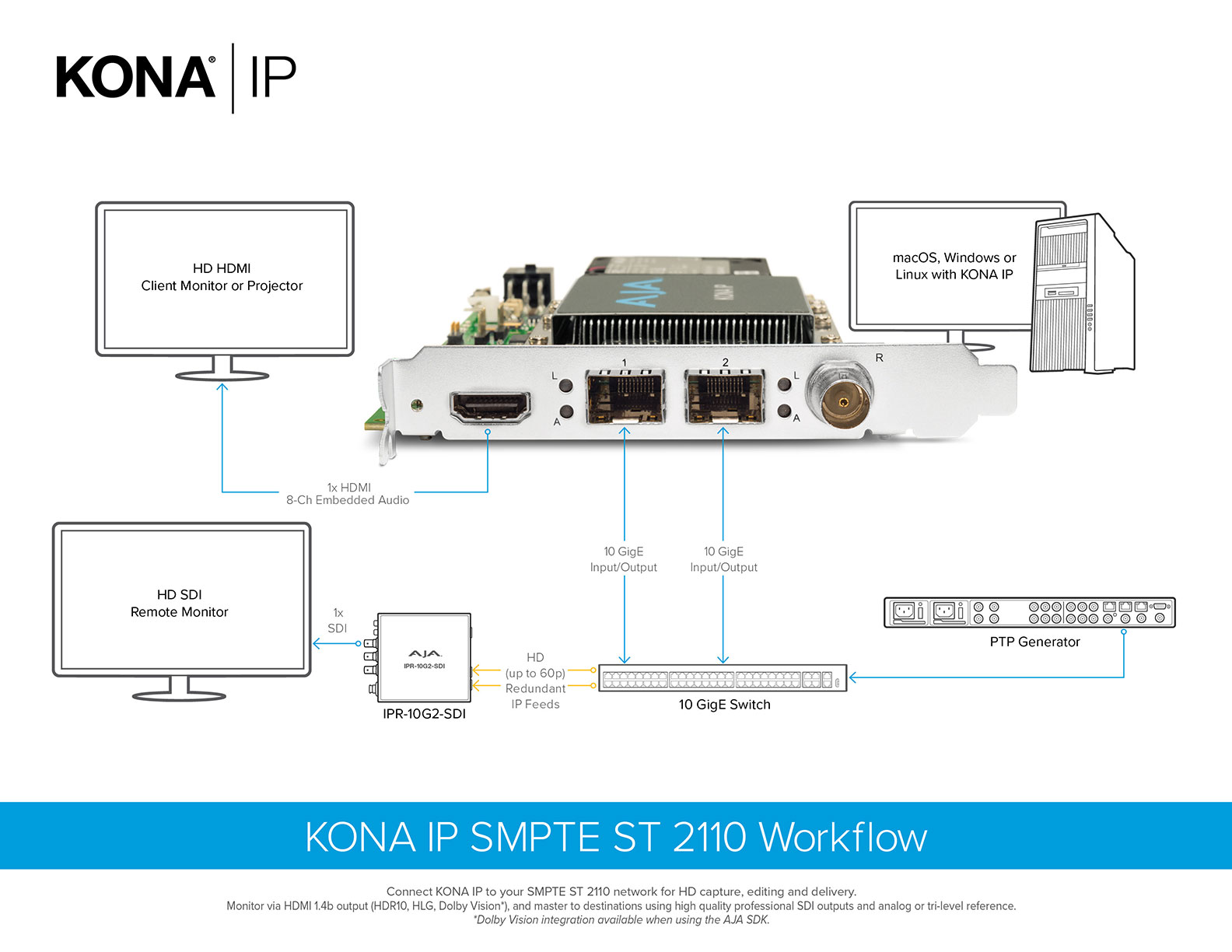

Connect KONA IP to your SMPTE ST 2110 network for 4K/UltraHD input (receive) or output (transmit), or alternatively 2K/HD I/O with pass-through.

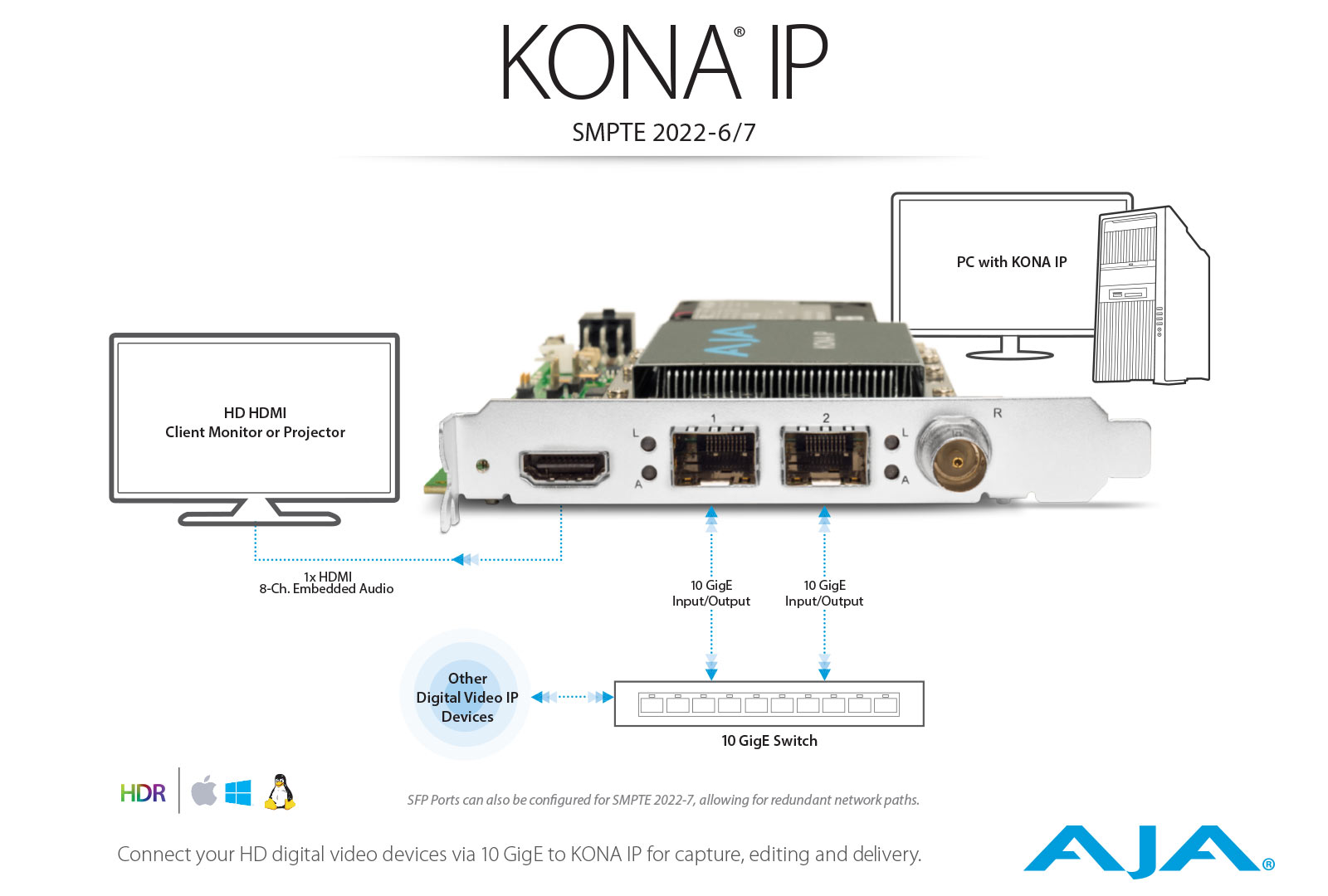

SMPTE 2022-6 support for transmission and distribution of uncompressed 3G-SDI and 1.5G-SDI with sixteen channels of audio. SMPTE 2022-7 is also supported allowing for simultaneous delivery of data across dual network paths, for redundant signal support crucial for broadcast needs.

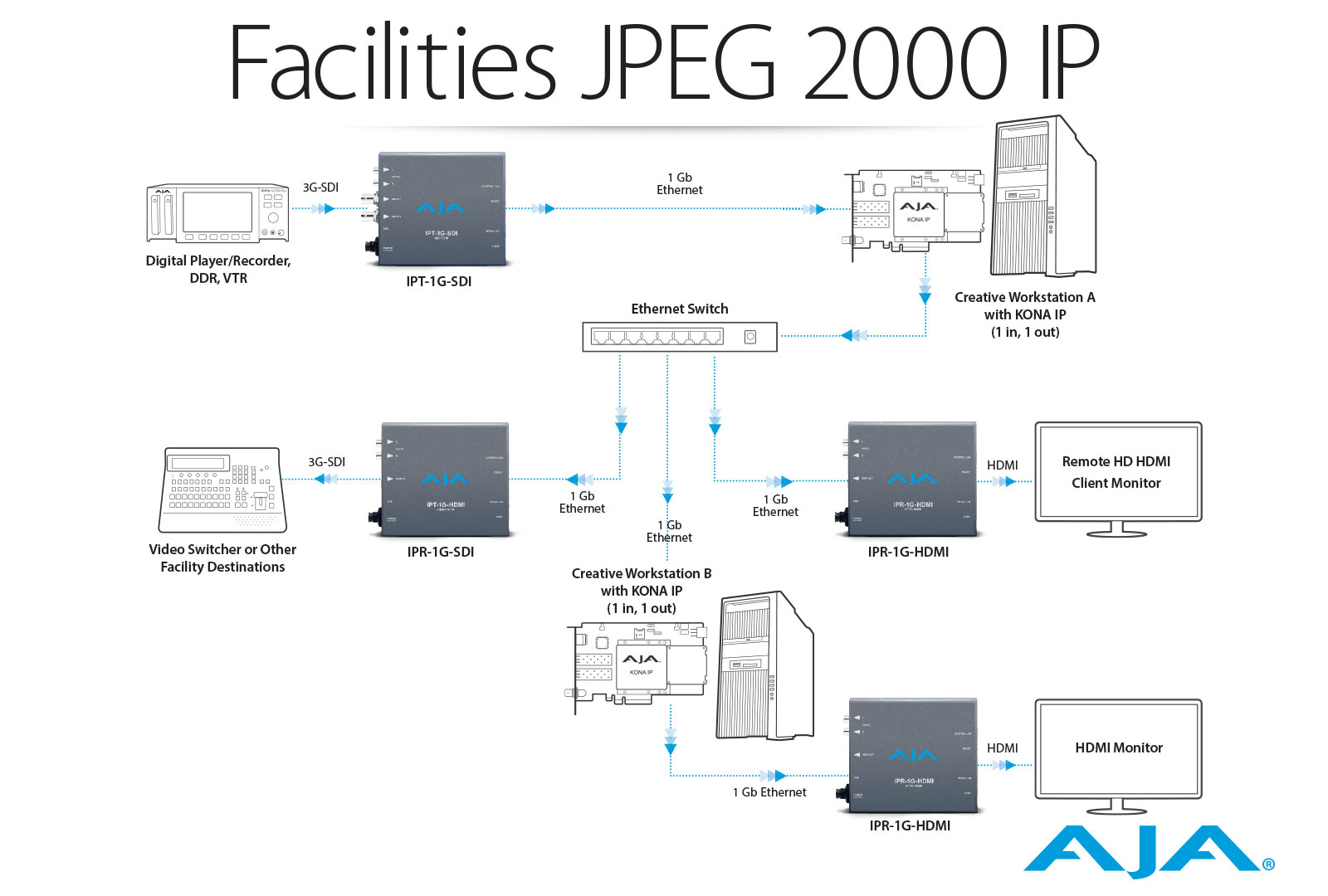

This optional KONA IP firmware license enables compression and decompression of HD video in real time to/from JPEG 2000 encoded within an MPEG-2 transport stream. Featuring support for TR-01, the update ensures interoperability with other JPEG 2000 systems and devices across the network.
J2K Optional License View Workflow
AJA DataCalc is a mobile OS application for iOS, iPadOS and Android, offering two modes for storage and time calculations based upon raster, frame rate and codec choices.
DataCalc - Calculate your storage needs before capture.
TimeCalc – Calculate the run time of materials you can capture by storage size.
Share results with your team straight from the application.
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your KONA installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.
KONA products are covered by a generous three year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.
*SMPTE ST 2110 only**2SI over IP via ST 2110-23
Note: High Frame Rate capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates.
*Capture and simultaneous monitoring is supported up to 2K/HD**SMPTE ST 2110 only***Optional Purchase
*HDR support is application dependent. Check with your software manufacturer for compatibility.
Note: Bit depth support is application dependent. Check with your software manufacturer for compatibility.
